TVSE LP-46 DLITE Plus Barcode Label Printer, 4 Inch, USB + Serial + LAN Ports Longer Ribbon Capacity of 300 M

0 Reviews
In stock

Original price was: ₹18,500.00.Current price is: ₹11,500.00.

(-38%)
SKU: TVSLP46DELITEBT-1
Brand:

Product details

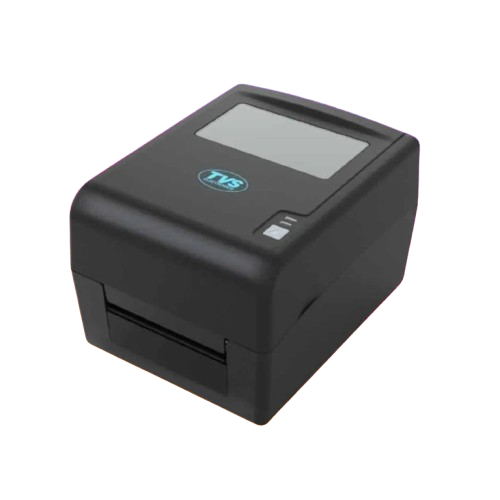

TVS-E LP-46 DLITE Plus is a compact, high-resolution thermal transfer label printer designed for business use in retail, logistics, manufacturing, and warehousing environments. It is known for its durability, fast printing speed, and high-capacity ribbon support.
Key Features and Specifications
  • Printing Method: Thermal Transfer & Direct Thermal
  • Resolution: 203 DPI (dots per inch)
  • Max Print Speed: 6 inches per second (152 mm/s)
  • Max Print Width: 4.25 inches (108 mm)
  • Connectivity Interfaces: Standard USB, Serial (RS-232), and Ethernet
  • Memory: 32MB SDRAM and 64MB Flash memory
  • Ribbon Capacity: Supports high-capacity ribbons up to 300 meters long, with a 1-inch core, which reduces the frequency of replacements
  • Media Types: Compatible with continuous paper, die-cut labels, black mark paper, and fanfold paper
  • Emulation: Compatible with multiple printer languages including TSPL-EZ (compatible with EPL, ZPL, ZPL II, DPL)
  • Design: Compact, durable plastic body with a transparent window for easy media monitoring
  • Warranty: Typically comes with a one-year onsite warranty
Ideal Usage
The LP-46 DLITE Plus is well-suited for a variety of demanding label and barcode printing tasks, including:
  • Shipping labels
  • Product labeling in retail
  • Inventory tracking in warehouses
  • Healthcare and office label

Additional information

Print method

Thermal/Thermal transfer

Resolution

203DPI, 300DPI

Print width

108mm(Max.), 106mm (Max.)

Print speed

152mm/s(Max.), 102mm/s(Max.)

Memory

SDRAM: 32MB,
Flash:16MB(64MB optional)

Sensor

Photoelectric sensor

TPH temperature detection

Thermistor

TPH position detection

Microswitch

Interface

Standard USB port

Optional

RS232 serial port, Ethernet, Bluetooth, WiFi (Bluetooth or WiFi)

CPU

32bit RISC MCP

Barcodes

1D: Code39,Code93,Codabar,Code128(Subsets A, B, and C),EAN-13,EAN-8,UPC-A,UPC-E,UP­C/EAN Extensions, Planet Code, Standard 2 of 5,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,G51 Data Bar(RSS)
2D: PDF 417,MicroPDF417,QR Code,DataMatrix,MaxiCode,GS1 Composite

Character enlargement/rotation

Rotate (0°, 90°, 180°, 2701 Enlarge (1-10x)
Vector fonts support stepless scaling

Character set

Built in 7 dot matrix fonts and 1 vector font
Support users to download dot matrix fonts and vector fonts

Graphical

Binary non-format bitmap, HEX, PCX, BMP and IMG can be download to FLASH, RAM

Paper type

Continuous paper, marking paper, label paper, perforated paper

Paper width

118mm (Max.)

Paper roll OD (Max.)

127mm(5 inch)

Paper roll ID

25.4mm(1 inch) /38mm(1.5 inch)

Paper out

Tear off/ Rewind/ Peel off (optional)/Cut (optional)

Paper thickness

0.06-0.25mm

Ribbon length

300m(Max.)

Ribbon ID

12.7mm/25.4mm

Button, Indicators

1 button,2 indicators

Input

100-240V AC, 50-601-b

Output

24V DC, 2.5A

Dimensions

280mm(L) x218mm(VV)x180mm(H)

Weight

About 2.3kg
