Product details
The Zebra Symbol DS9208 is an omnidirectional, hands-free and handheld 2D area imager barcode scanner known for its speed and versatility in reading both printed and mobile device barcodes. It is widely used in retail and hospitality for applications like mobile coupons and loyalty cards.

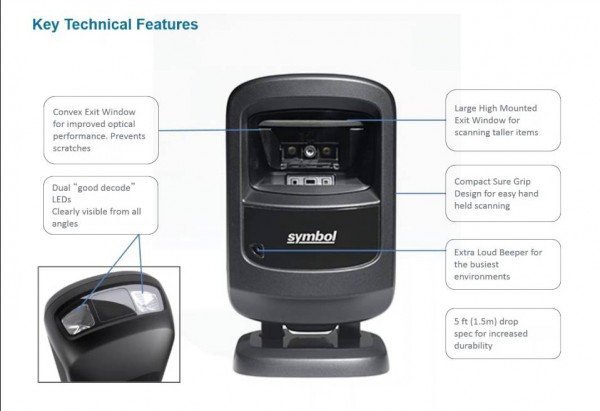

Key Features and Specifications
- Scanning Capability: The DS9208 can capture all common 1D and 2D barcodes (including QR Code, PDF417, and Datamatrix), as well as postal codes, from both paper labels and screens of mobile phones and computers.
- Scanning Technology: It uses a 2D area imager with a 630 nm LED illumination source and a 625nm single-dot aiming pattern. This technology allows for true point-and-shoot scanning, eliminating the need to align the barcode with the scanner.
- Operational Modes: It offers both hands-free (presentation) and handheld modes, providing dual mode functionality that saves time and minimizes the need to lift heavy items.
- Durability: The device is designed to withstand multiple 5-foot (1.5-meter) drops to concrete and has an IP52 sealing specification for protection against dust and water spray.
- Interface: It supports multiple interfaces, including USB, RS-232, RS-485, and Keyboard Wedge, ensuring easy integration with existing systems.
- Compact Design: With a compact footprint of approximately 5.5 in. H x 3.2 in. W x 3.1 in. D (14.0 cm H x 8.21 cm W x 8.0 cm D), it fits easily in space-constrained areas.
- Additional Features:
- Picklist Mode: Allows users to select and scan a single barcode from a menu or “picklist,” useful for small items.
- Integrated EAS: Features integrated Electronic Article Surveillance (EAS) deactivation functionality for Checkpoint systems, removing the need for a separate system.
- Programmable Beeper: Dual LEDs and a programmable beeper (volume, frequency, duration) ensure confirmation of successful scans even in noisy environments.
